Description
EV Charger
EV Charger
Additional information
Item | Specification |

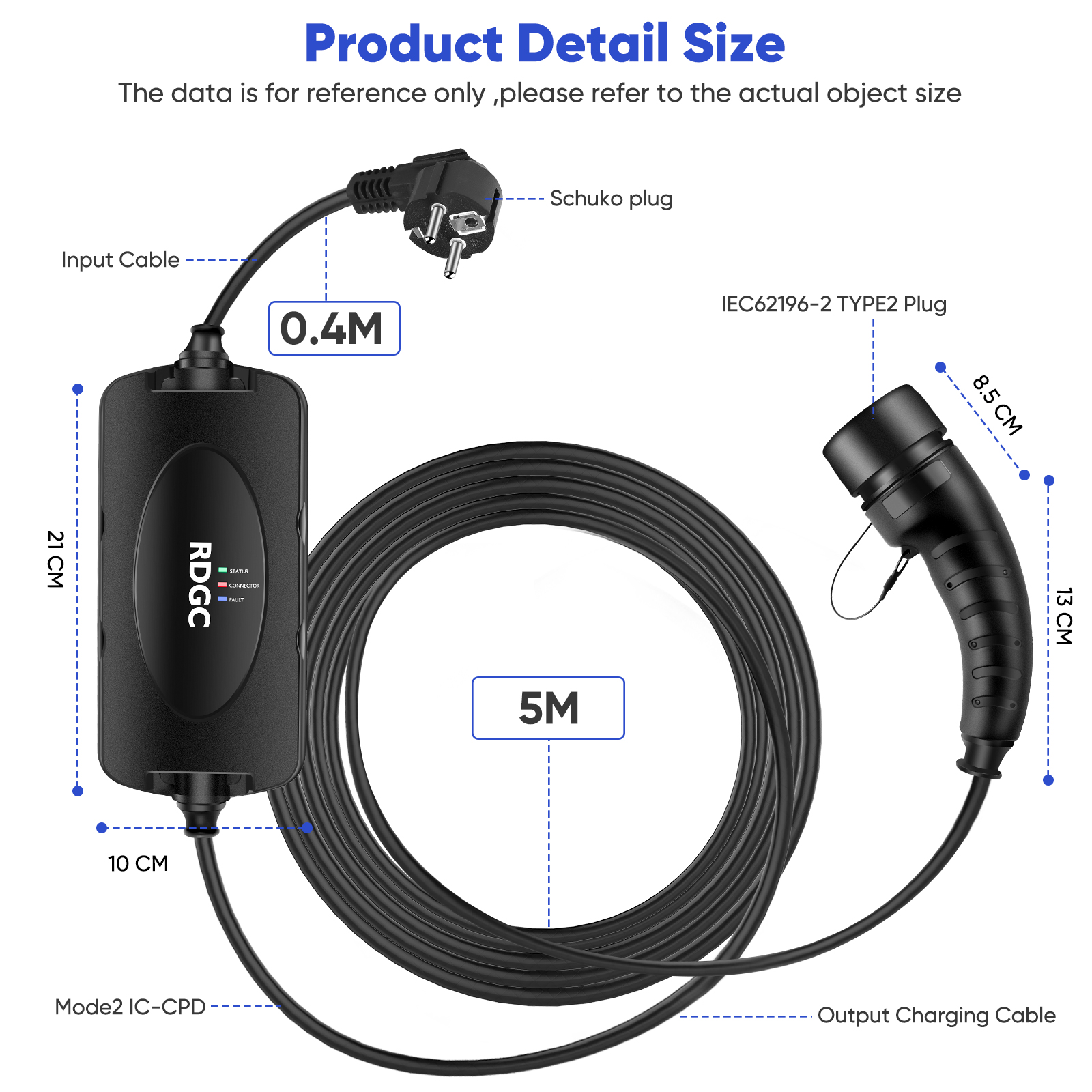

Products size | 221*106*50mm |
Cable length | 3-20M |
Installation method | Take it with you, plug and play |
Power supply | AC outlet power supply |
Indicator light | Power, connection, charging, error |
Operating Voltage | 230V AC |
Working current | 8-16A |
Input frequency | 50/60Hz |
Rated power | 3.68kW |
Safety protection | Leakage current, over and under voltage, over and under frequency, over current, high and low temperature, grounding protection, lightning protection |

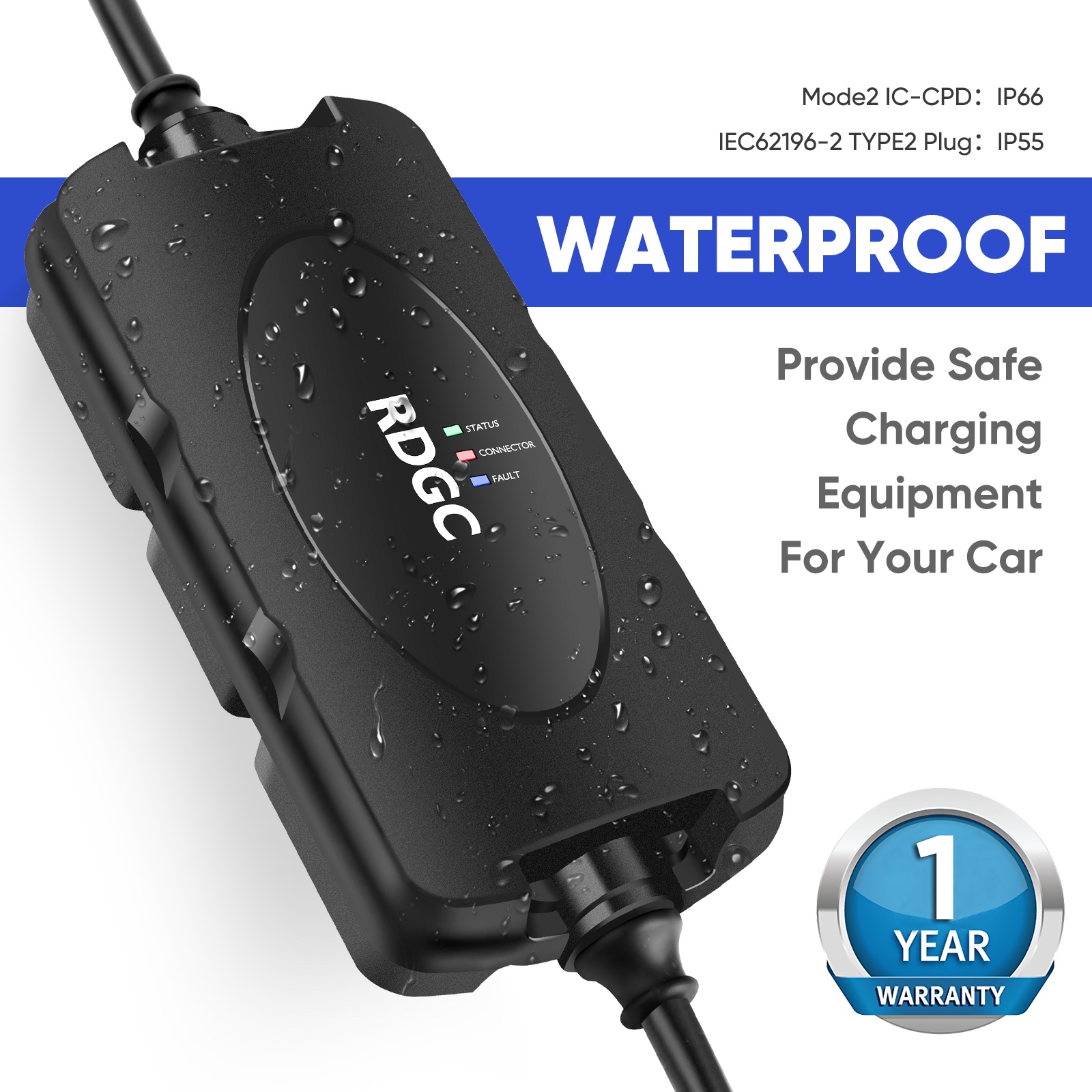

Protection class | IP66 |
Operating temperature | -30°C - +50°C |
Altitude | |
Product number | EVC001 |
Reference standard | IEC62752 GB/T18487.2-2017 GB/T 34657.2-2017 GB/T 22794-2017 |
